Proven VariThane Mixing Technology

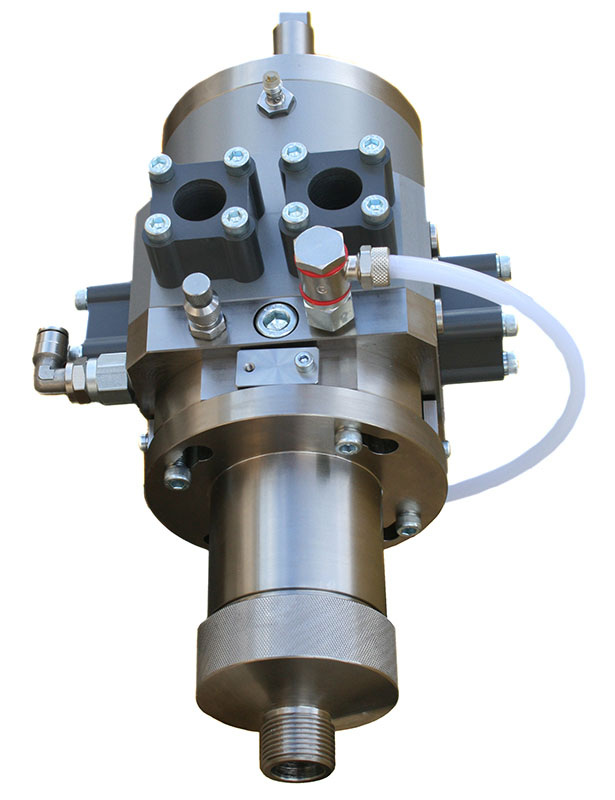

The CTM VariThane Low Pressure series of machines are available with a range of CTM designed and ‘in house’ manufactured mechanical mixing heads to cover a wide range of applications.
CTM mixing heads are available in various designs and feature anti corrosion hard face surface treatments for longer operating life.
Micro Dosing
General Purpose
Multiple Components
Enhanced pouring time & pressure control
CTM VariThane Low Pressure series feature directly mounted mixing head sensors.
Advantages
– More accurate moulding weight control.
– Pressures measured directly at the mixing head for improved process control.
– Maintenance aid by measuring head open/close speed.
Intelligent Mixing Heads

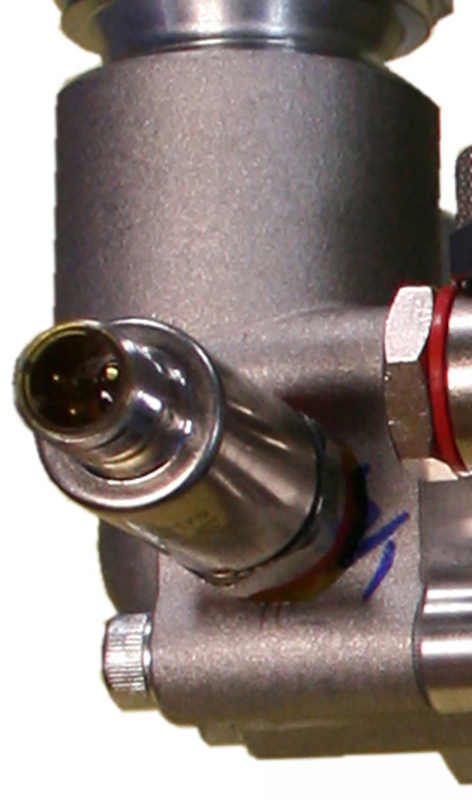

Isocyanate Pressure Sensor

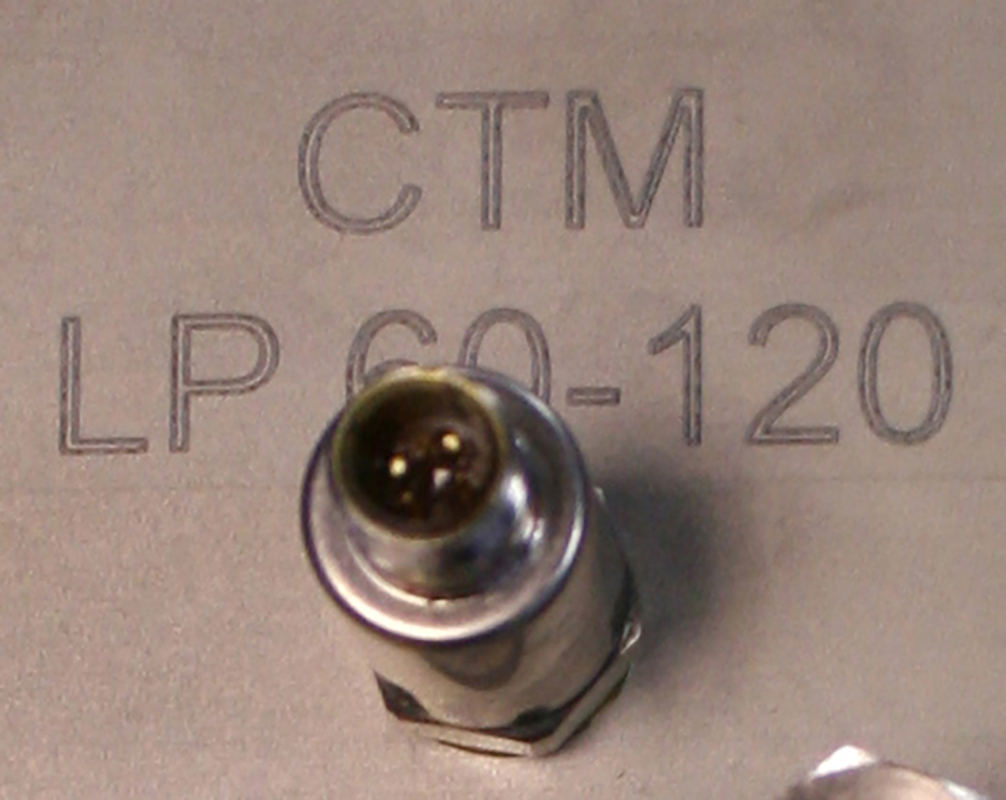

Pouring Start/Stop Sensor

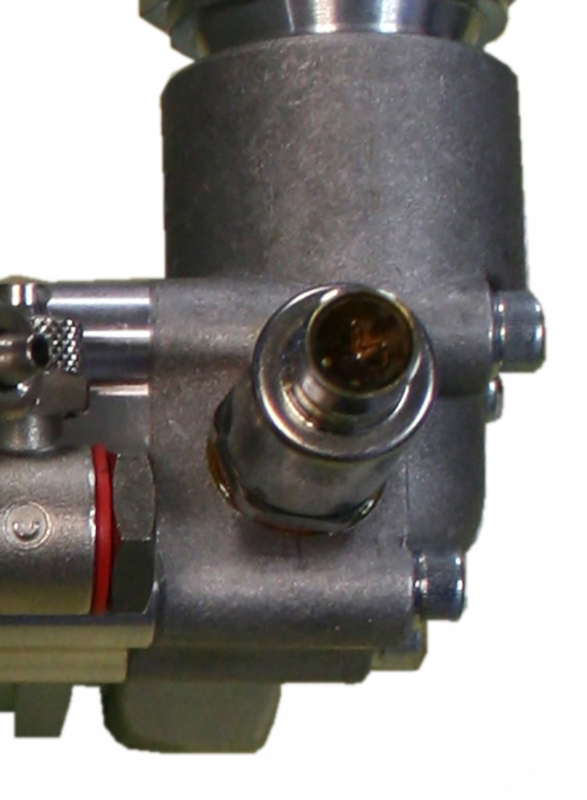

Polyol Pressure Sensor
Enhanced Metering Technology
CTM VariThane Low Pressure series feature fully automatic component output & ratio change capability ‘shot to shot’.
Advantages
– Large and small parts or cavities can be produced or filled without the need to change the machine set-up
– Harder & softer parts can be produced at the same time.
Components Loading Options
CTM VariThane Low Pressure series feature diaphragm or piston loading pumps, the machine can be connected to a bulk storage supply system. Component level control is managed via a dedicated level control page on the HMI.
Diaphragm Type

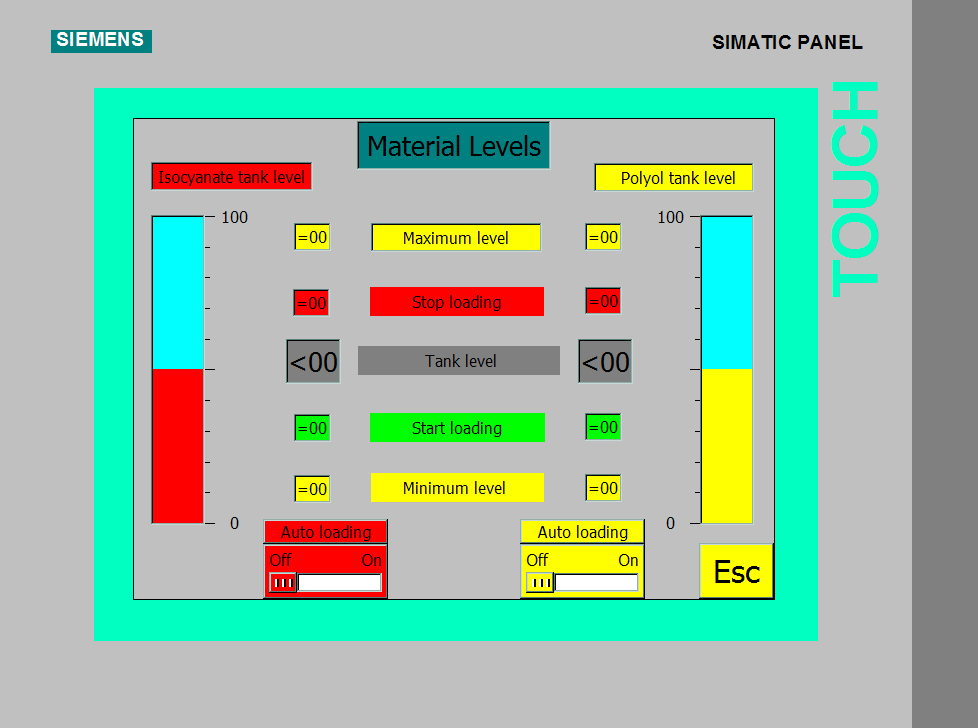

Leveles Control Screen
Components Storage Options
The CTM VariThane Low Pressure series feature non pressure 100 litres component tanks as standard, however certified pressure & vacuum tanks of 50, 330, 520 or 1,200 litres capacity are available to meet a wider range of applications.
Advantages
– The machine can be configured for current processing requirements and later reconfigured to meet new processing requirements without the need to buy a replacement machine.
Component Preparation Options
The CTM VariThane Low Pressure series is designed with components preparation storage options in mind, whether your process requires a degassing cycle or pressurisation.

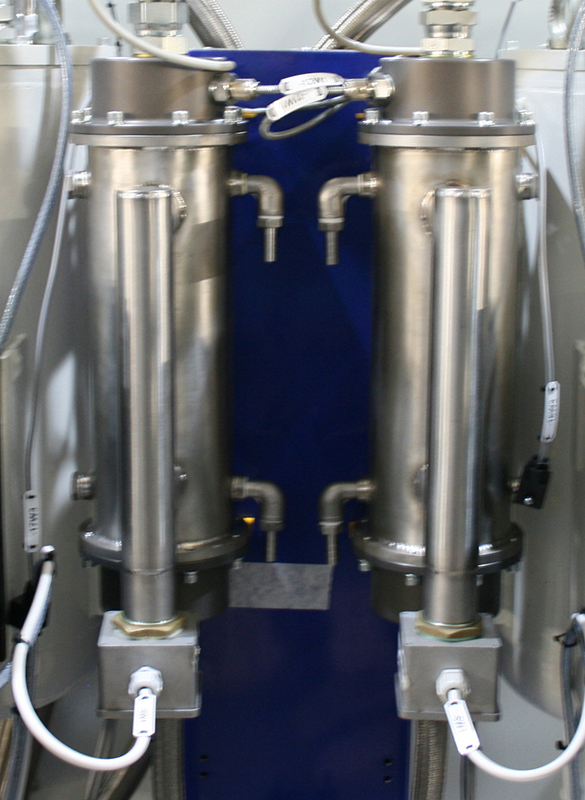

St/St Heat Exchangers

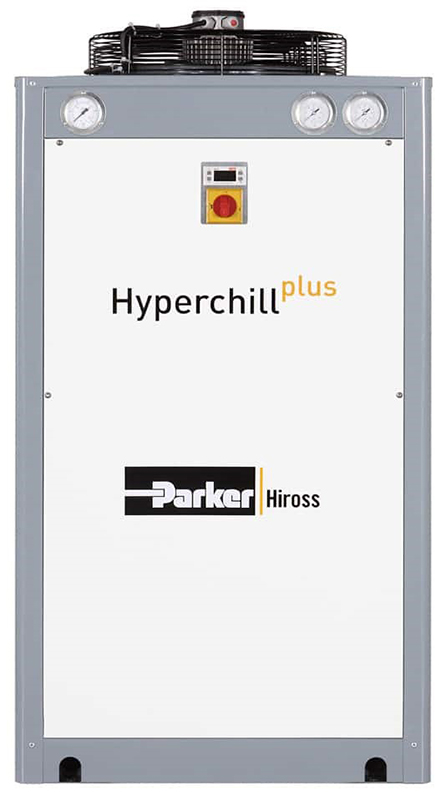

Water Cooling Units

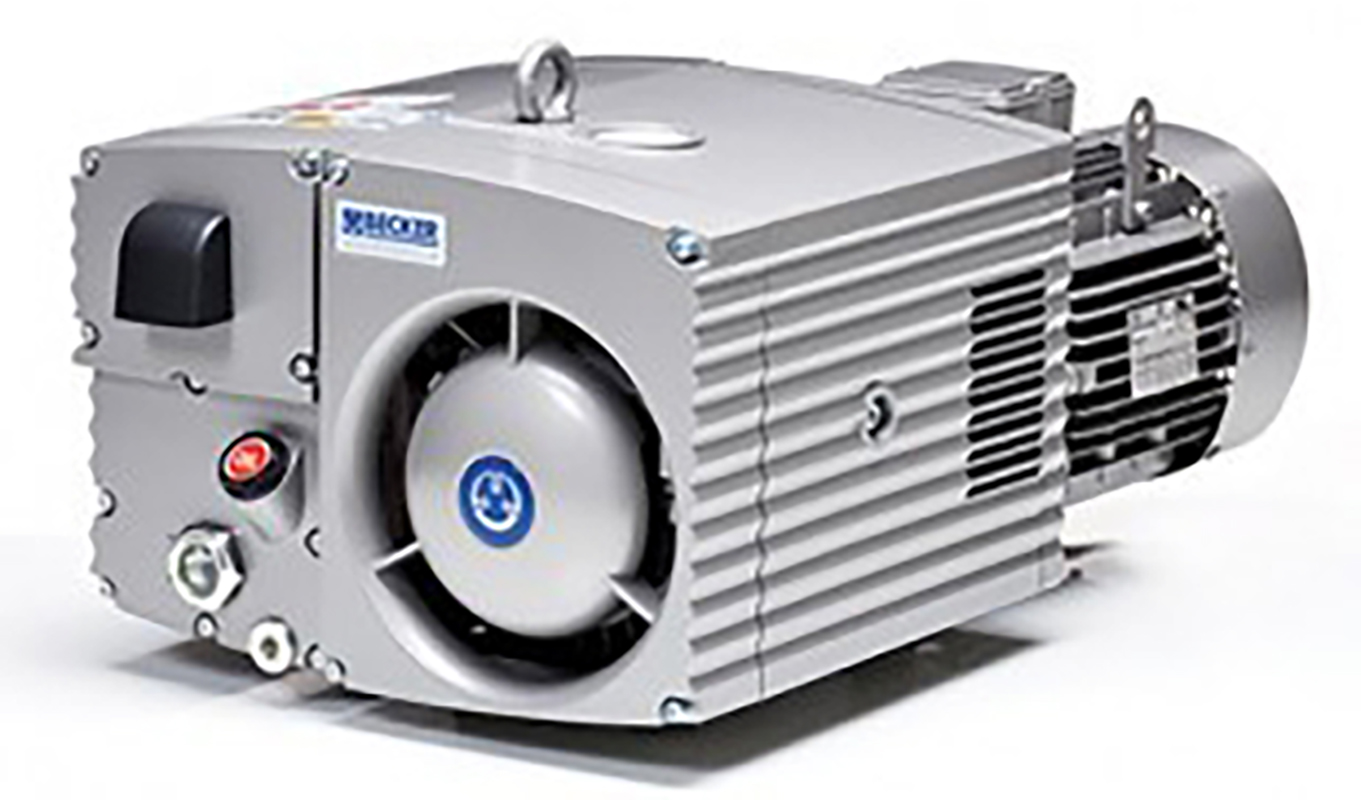

Component Tanks Vacuum Pumps
Component Flow Rate & Ratio Control Options
CTM VariThane Low Pressure series is available with fully automatic adjustment of component flow & ratio via volumetric gear flowmeters or mass flowmeters.
Advantages
– The machine is always at the correct mixing ratio.
– No requirement to complete repeated manual calibration checks.

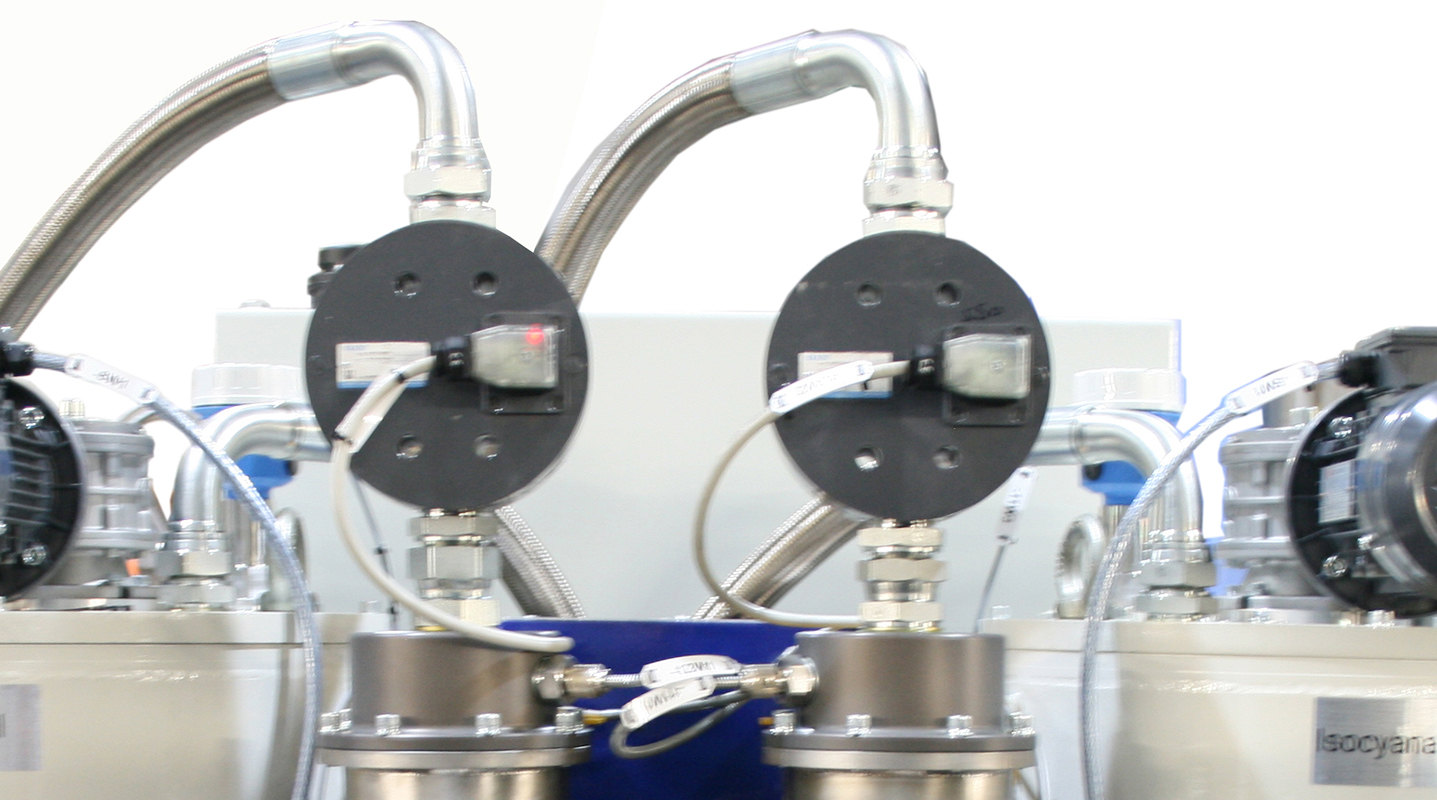

Volumetric flowmeters

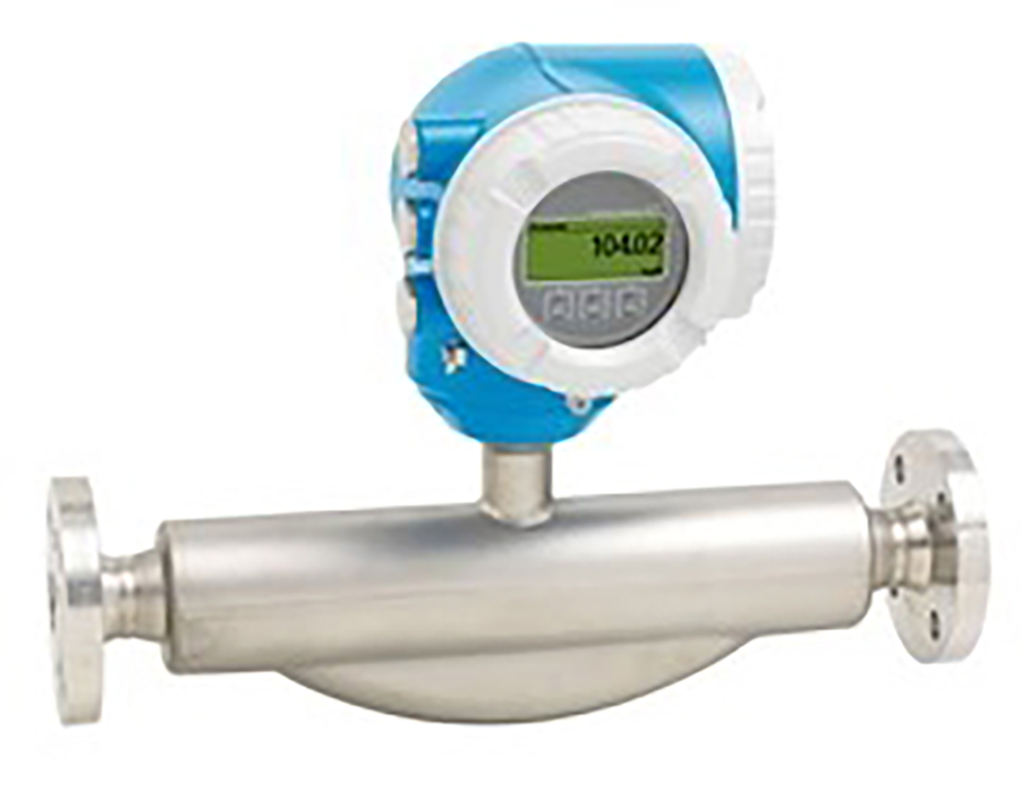

Mass Flowmeters
Process Data Capture Options
CTM VariThane Low Pressure series is available with Process data capture for enhanced process control.
Real time processing data is stored which can be used to provide quality assurance reporting on the products being produced.
Advantages
– Production quality control is both monitored and recorded.
– The stored data can either be exported onto a USB memory device or directly via a network to any specific PCs.
12” colour operator interface with
machine data export USB port
Remote Support Options
CTM VariThane Low Pressure series feature a modem for real time technical support. Our system enables a CTM engineer to remotely connect to the machine providing rapid diagnosis and support for your maintenance teams.
In Panel Remote Support Connection
Direct real time support from CTM
Filled Materials Processing Options
CTM VariThane Low Pressure series can be specified for processing of filled and abrasive materials.
Filled materials metering machine
Special progressive Cavity Pumps
Cleaning Agent Delivery Options
CTM VariThane Low Pressure series features as standard a stainless steel pressurised 18 litres solvent tank c/w low level alarm and manual flush valve.
We can offer a system enhancement where solvent is delivered directly for a 200 litre drum.
Advantages
– Reduced manual handling.
– Improved production efficiency.
Mixing Head support & Movement Options
CTM VariThane Low Pressure series can be specified with various mixing head support & handling systems from a standard machine mounted boom through to a motorised mixing head carriage system
CTM VariThane Low Pressure series mixing head outlet nozzle can be equipped with a flexible lance hose c/w a rigid end section if required.
This approach offers a number of advantages in that the mixing head can reach more tooling and mixed PU can be better distributed within an insulation panel cavity. Please appreciate that solvent cleaning quantities are increased when using this system.
CTM VariThane Low Pressure series represent a lower level of initial investment for the client when compared to High Pressure systems.
Low Pressure Metering
Lower investment level machines.

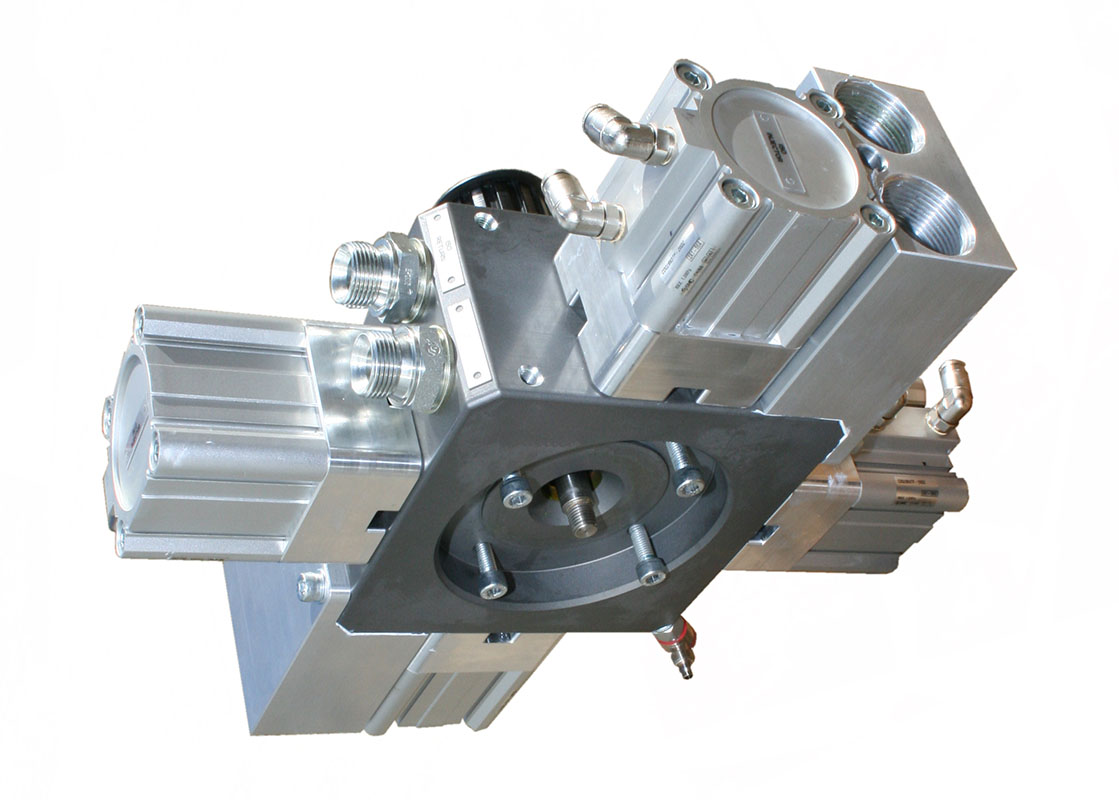

Mixing Head Pneumatically operated.
The chemical streams are injected into a dynamic mixing chamber and then dispensed into your tooling.
The mixing chamber then needs to be flushed of the reacting material.
Advantages
More economical initial entry into polyurethane production.
Bubble free elastomer products.
Lower power consumption.
More flexible output & ratio change (shot to shot).
Able to adapt a pouring lance for easier access to injection points.
Further Considerations
Mixing chamber needs flushing after use with solvent or water.
Raw materials wastage.
Disposal costs for waste flushing materials.
Flammable blowing agents cannot be used.
